MOZA R9 V3 Direct Drive Wheel Base

7 people are viewing this product right now.

Compact 9 Nm direct drive wheel base with 21-bit magnetic encoder, high-performance servo motor, NexGen 4.0 force feedback, intelligent temperature control and MOZA Pit House support.

PRICE

331,37 € incl. VAT

VAT included·No import duties, no hidden fees Final price

EU Warehouse·Ships within EU, no customs No customs

B2B·Enter your valid EU VAT ID at checkout to remove VAT automatically EU VAT ID

Estimated delivery dates: Jun 3, 2026 - Jun 8, 2026

10+ in stock

14-day returns

Secure payment

Safe packaging

Accepts: VISA MC PayPal G Pay Apple Pay SSL

Compare

MOZA R9 V3 Direct Drive Wheel Base

Compact 9 Nm direct drive force feedback with real upgrade potential.

Name: MOZA R9 V3 Direct Drive Wheel Base
Brand: Moza
SKU: RS080
Price: 331.37 EUR
Availability: InStock

The MOZA R9 V3 is a compact direct drive wheel base for racers who want a serious step beyond entry-level force feedback. It delivers 9 Nm peak torque, 21-bit magnetic encoder precision, a high-performance servo motor, NexGen 4.0 force feedback, intelligent temperature control and full MOZA Pit House tuning.

9 Nm torque 21-bit encoder NexGen 4.0 FFB

MOZA R9 V3 Direct Drive Wheel Base angled product view - OCRacing

MOZA R9 V3 rear connection ports - OCRacing

MOZA R9 V3 official hero render - OCRacing

MOZA R9 V3 9 Nm direct drive wheel base render - OCRacing

9 Nm DD power

A sweet spot for stronger feedback without making the cockpit oversized.

MOZA lists the R9 V3 with 9 Nm peak torque from a direct drive system. For GT, formula, rally and road-car sims, that is enough force to feel weight transfer, curb strikes and tire load clearly while keeping the base compact enough for many home cockpits.

direct drive compact footprint 180 W peak power

21-bit magnetic encoder

Fine steering resolution for cleaner inputs and smoother feedback.

The 21-bit encoder helps the R9 V3 track steering position with very high resolution. That matters when you are making tiny corrections on corner exit, catching a slide, or trying to keep a car stable through a long braking zone without over-driving the wheel.

MOZA R9 V3 exploded servo motor assembly - OCRacing

MOZA R9 V3 high-performance processing visual - OCRacing

9Nm peak torque

Strong direct drive output for home and profile cockpits.

21-bitMagnetic encoder

High-resolution steering input for detailed force feedback.

1000Hz USB refresh

Fast communication between the base and your PC.

PCPlatform support

Designed for PC sim racing through MOZA Pit House.

MOZA R9 V3 direct drive wheel base product detail - OCRacing

MOZA R9 V3 Pit House force feedback tuning interface - OCRacing

NexGen 4.0 force feedback

Tune the wheel base around the car, sim and your driving style.

The R9 V3 supports MOZA’s NexGen 4.0 force feedback algorithm and Pit House Control Center. You can shape steering feel, damping, inertia, friction and response behavior so the same base can feel calm in road cars, sharp in formulas and physical in GT machinery.

Pit House control mobile app support firmware updates

Aluminum housing and thermal control

Built to stay consistent when the stint gets long.

The R9 V3 housing is made from aviation-grade aluminum alloy and MOZA lists intelligent temperature control. The goal is stable force feedback over longer sessions, with a compact body that still has the rigidity and thermal behavior expected from a proper direct drive base.

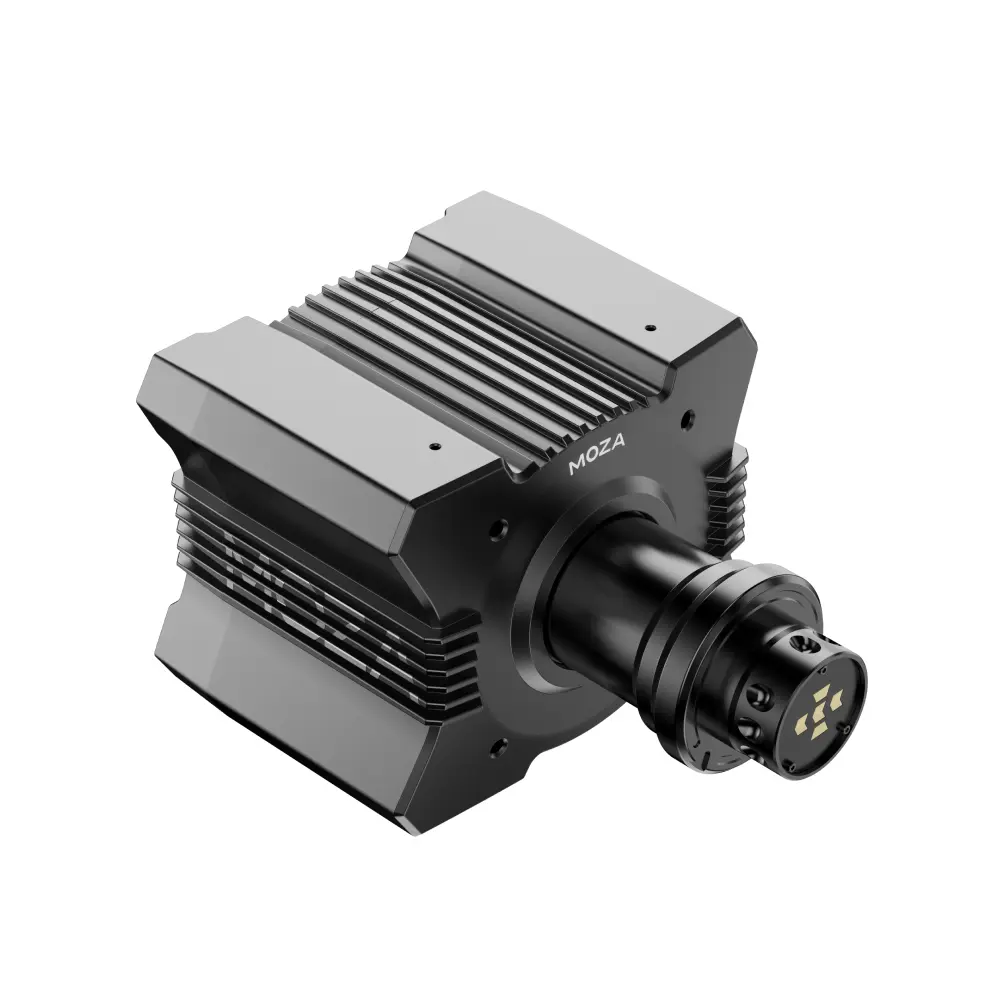

MOZA R9 V3 side housing and cooling fins - OCRacing

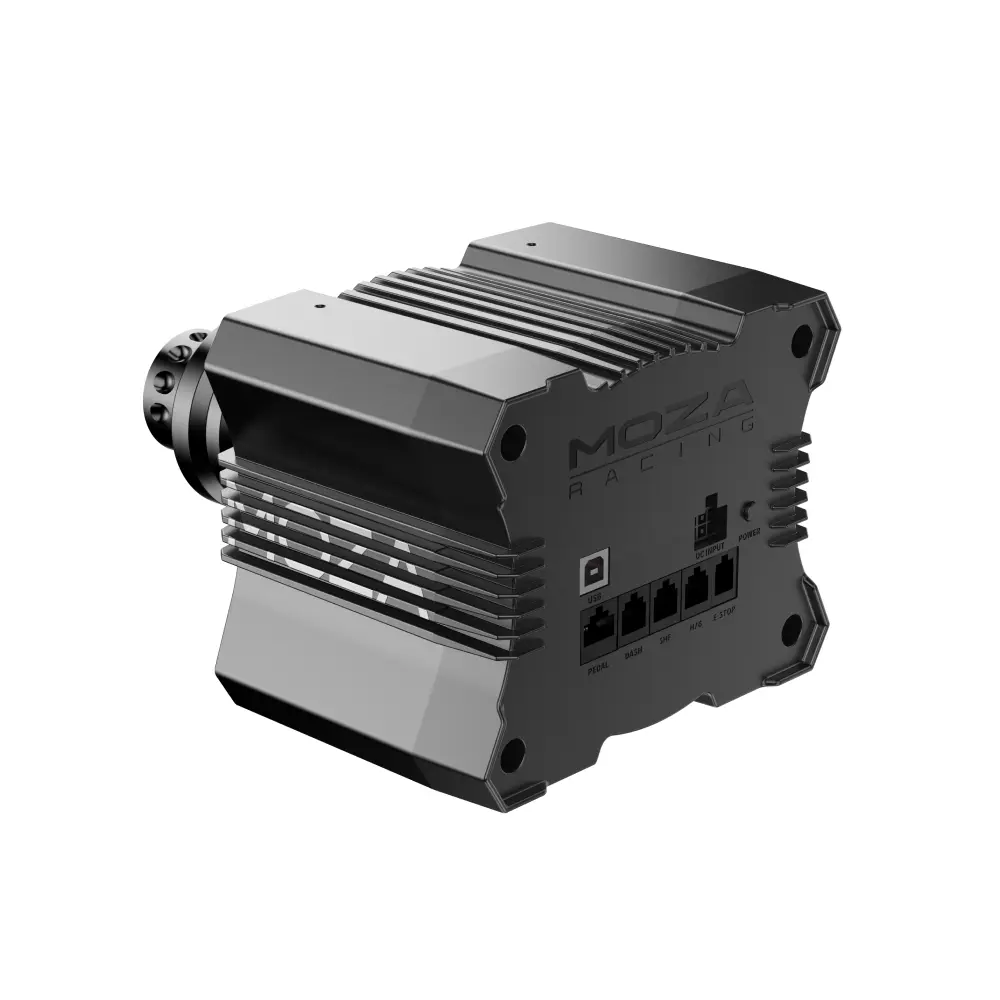

MOZA R9 V3 rear ports for MOZA ecosystem devices - OCRacing

Temperature control

Designed to keep output stable through longer sessions.

Conductive slip ring

Industrial-grade slip ring design supports durable signal transfer.

Aviation-grade aluminum

Rigid housing with a premium black finish.

Quick release ready

Works with the MOZA quick release ecosystem.

MOZA R9 V3 product side angle - OCRacing

MOZA R9 V3 rear power USB dash shifter handbrake and E-stop ports - OCRacing

Bottom mount with optional brackets

Easy to place on a rig, desk clamp or side-mount setup.

The R9 V3 supports bottom mounting as standard, with an optional side mount bracket and optional desk clamp available. Connection ports include power, DC input, E-stop, USB, dash, shifter and handbrake, so it can grow from a simple wheel setup into a fuller MOZA cockpit.

bottom mount side mount optional desk clamp optional

What’s in the box

Official MOZA box contents.

R9 Wheel Base

The MOZA R9 V3 direct drive wheel base.

Power supply

External power supply for the 36 V DC wheel base system.

USB cable

Connection cable for PC and MOZA Pit House setup.

Toolkit and documents

User manual, warranty card and toolkit included by MOZA.

Technical specifications

MOZA R9 V3 specs.

Product	MOZA R9 V3 Direct Drive Wheel Base
OCRacing SKU	RS080
Official MOZA SKU	T02D010007D
Barcode	6973137270810
Platform	PC
Drive system	Direct Drive
MOZA Pit House Control	Supported
Maximum wheel rotation	90 to 2700 degrees
Housing material	Aviation-grade aluminum alloy
Color	Black
Peak torque	9 Nm
Peak power	180 W
Input voltage	110V~220V AC to 36V DC
USB refresh rate	1000 Hz
Encoder resolution	21-bit
Indicator	Yes
App functions	Supported
Quick release	Supported
Connection ports	Power, DC input, E-stop, USB, dash, shifter, handbrake
Box contents	R9 Wheel Base, user manual, warranty card, power supply, USB cable, toolkit
Mounting method	Bottom mount
Side mount option	With optional side mount bracket
Desk clamp	Optional
Emergency stop switch	Optional
Firmware updates	Online firmware upgrade supported
Official product data weight	5.0 kg listed in MOZA product data
