MOZA R3 Racing Bundle (PC)

Your first proper direct drive setup for PC sim racing.

Name: MOZA R3 Racing Bundle (PC)
Brand: Moza
SKU: RS074
Price: 304.71 EUR
Availability: InStock

The MOZA R3 Racing Bundle for PC is a complete entry point into direct drive sim racing: R3 wheel base, ES Lite steering wheel, SR-P Lite pedals without clutch, table clamp, power supply and cables in one package. With 3.9 Nm of direct drive torque, a compact aluminum base and MOZA Pit House tuning, it is a serious upgrade from gear or belt-driven wheels while still being easy to place on a desk or entry-level cockpit.

3.9 Nm direct drive PC / Windows 10-11 table clamp included

MOZA R3 Racing Bundle PC with R3 direct drive base ES Lite wheel SR-P Lite pedals and table clamp - OCRacing

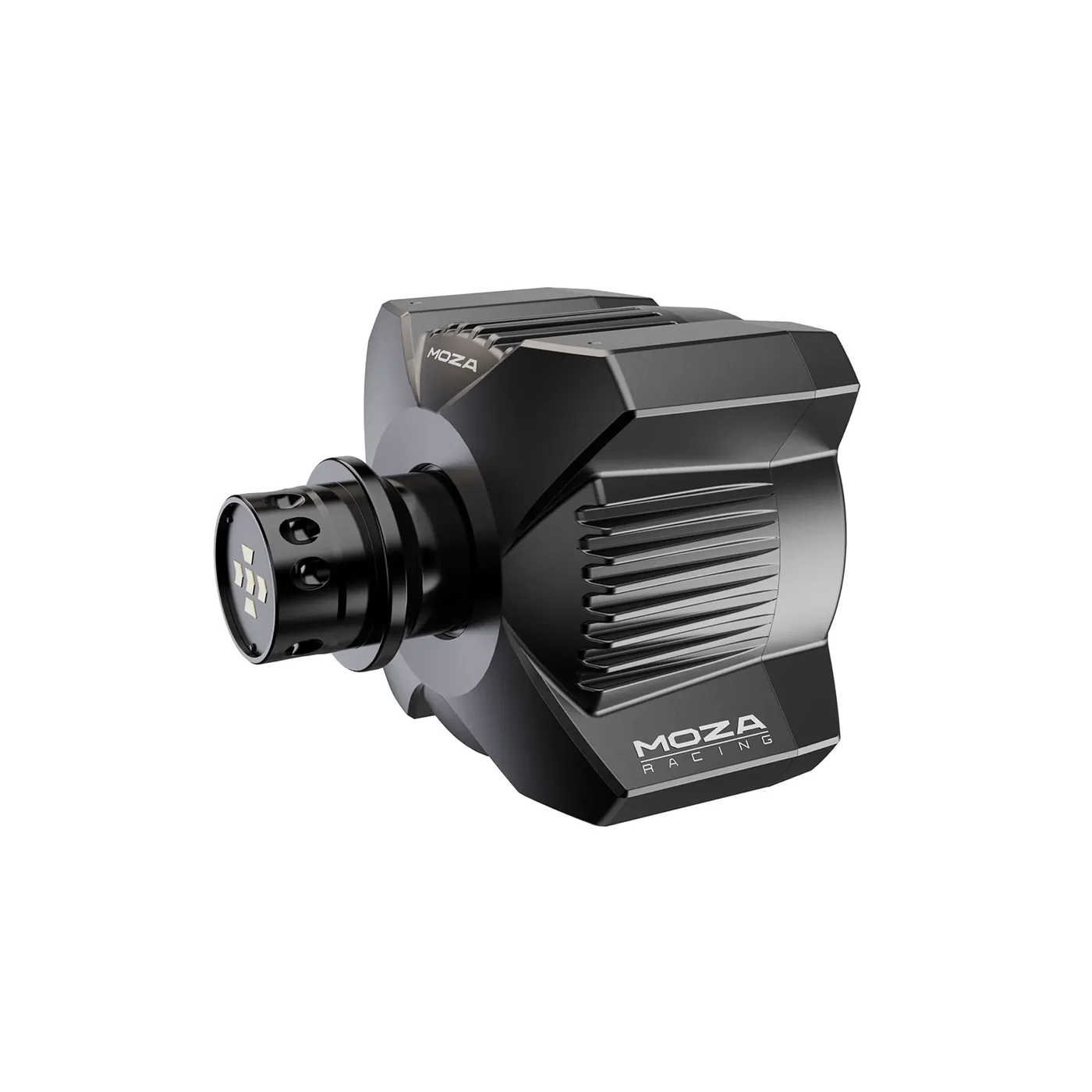

MOZA R3 direct drive wheel base detail - OCRacing

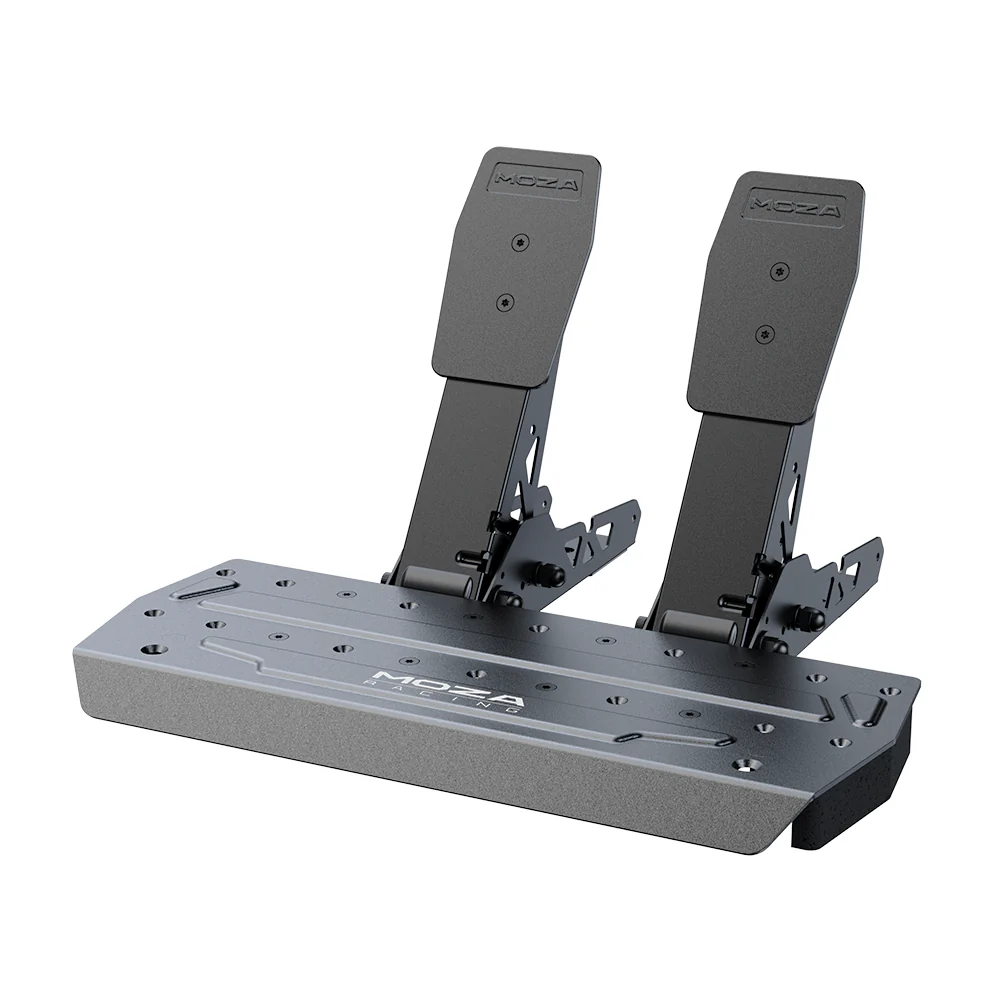

MOZA SR-P Lite two pedal set without clutch - OCRacing

MOZA R3 DD base with compact aluminum housing and quick release - OCRacing

Direct drive feel

3.9 Nm of feedback straight from the motor to your hands.

Unlike gear or belt-driven wheels, the R3 is a direct drive base. The motor is connected directly to the steering shaft, which helps deliver smoother, faster and more detailed force feedback. MOZA lists peak torque at 3.9 Nm, enough to feel kerbs, grip changes and car weight transfer clearly without needing a huge rig.

013.9 Nm peak torque

A realistic entry-level DD output for PC sim racing.

0215-bit encoder

High-resolution steering position tracking for precise control.

031000 Hz USB refresh

Fast PC communication for responsive input and feedback.

04Limitless rotation

Wheel rotation can be configured for different car types.

Compact aluminum base

Small enough for a desk, solid enough for a cockpit.

The R3 base uses an aviation-grade aluminum alloy housing in a compact black body. It can be installed through the 4 bottom mounting holes or used with the included table clamp, making the bundle practical for both desk setups and starter cockpits.

Aluminum alloy housing

Rigid compact body built for long-term use.

Desk or cockpit

Table clamp included, bottom mounting holes supported.

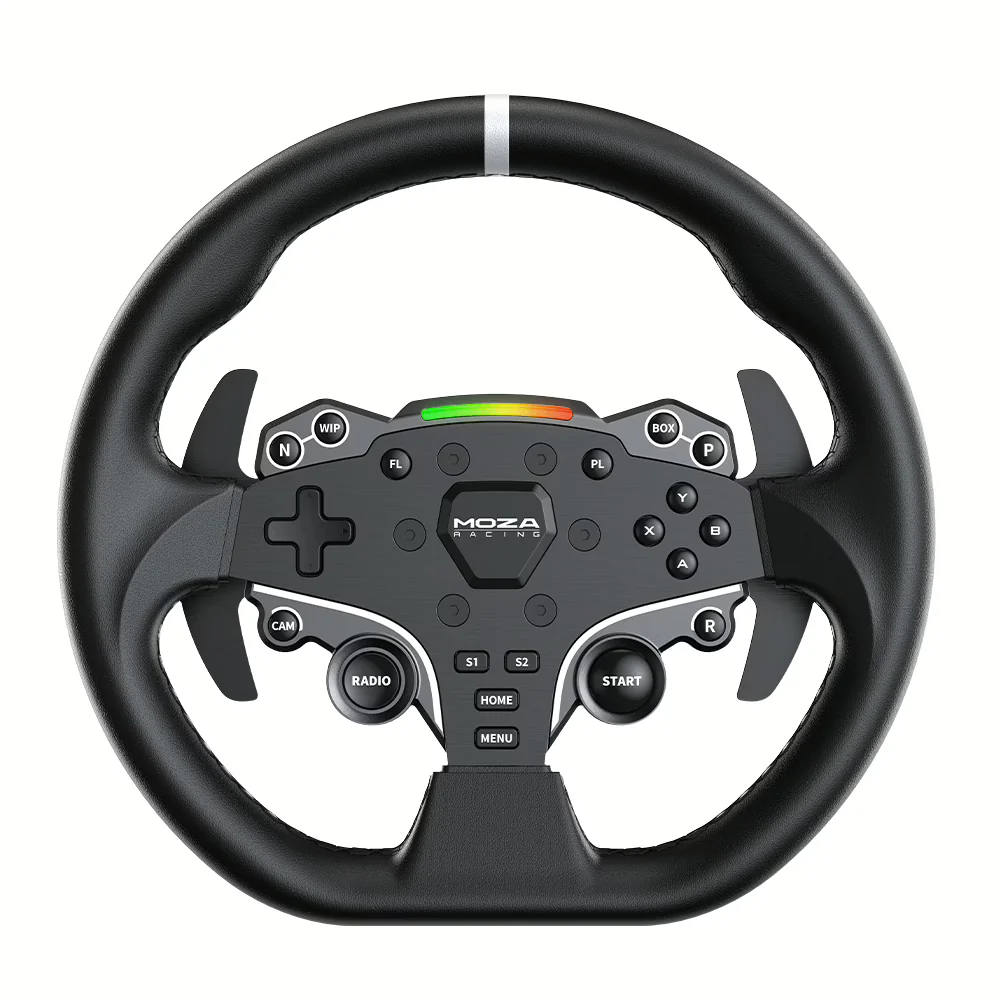

MOZA ES Lite Steering Wheel with 280 mm rim and 10 RGB LEDs - OCRacing

ES Lite wheel

280 mm wheel with buttons, paddles and RGB shift lights.

The included ES Lite Steering Wheel is PC-only in this bundle and uses a 280 mm size with ISF PU grips, aluminum alloy face plate, aluminum alloy shifter paddles, 22 buttons and 10 high-brightness RGB LED beads. It gives you enough on-wheel control for common race functions without needing extra button boxes on day one.

SR-P Lite pedals

Two-pedal set with adjustable spacing and Hall throttle sensor.

The bundle includes SR-P Lite pedals without clutch. The pedal set uses high-strength steel, adjustable pedal spacing and adjustable pedal plate height. Pedal input adjustment, input reversal and output curve adjustment are supported through MOZA Pit House.

throttle + brake no clutch included adjustable spacing

MOZA SR-P Lite pedals two pedal set without clutch - OCRacing

PC software

MOZA Pit House lets you tune the setup instead of just using defaults.

On PC, MOZA Pit House gives you control over force feedback strength, wheel behavior, button mapping, pedal input, output curves, RPM LEDs and firmware updates. That matters because a good direct drive setup should match the car, sim and driver, not feel locked to one factory profile.

PC compatibility

Built for Windows PC and mainstream racing titles.

This is the PC version of the MOZA R3 bundle. MOZA lists compatibility with Windows 10/11 and mainstream sim racing games including iRacing, Assetto Corsa, F1 series, rFactor 2, Project CARS, DiRT Rally, Forza Horizon and more.

Windows 10/11

PC-focused bundle with MOZA Pit House support.

Wide game support

Made for popular racing sims and PC driving titles.

MOZA R3 Racing Bundle PC complete kit with wheel base wheel and pedals - OCRacing

What’s in the box

Everything MOZA lists for the R3 Racing Bundle PC.

01R3 DD Base

Compact direct drive wheel base with 3.9 Nm peak torque.

02MOZA ES Lite Steering Wheel

280 mm PC-only wheel with buttons, paddles and RGB LEDs.

03SR-P Lite Pedals

Two-pedal set without clutch.

04Table clamp

Included clamp for desk mounting without a cockpit.

05Power and USB

Power adapter, power cord and USB cable.

06Toolkit and docs

Toolkit, user manual and warranty card.

Technical specifications

MOZA R3 Racing Bundle PC specs.

Product	MOZA R3 Racing Bundle (PC)
Platform	PC, Windows 10/11
Bundle components	R3 DD Base, ES Lite Steering Wheel, SR-P Lite Pedals without clutch, table clamp and accessories
R3 base drive type	Direct drive
Peak torque	3.9 Nm
Max wheel rotation	Limitless
Base housing material	Aviation aluminum alloy
Rated power	60 W
Input voltage	110V-220V AC to 12V DC
Encoder resolution	15 bits
USB refresh rate	1000 Hz
Base ports	Power, DC input, pedal, USB, dash
Mounting	4 bottom mounting holes; table clamp included
ES Lite wheel size	280 mm
ES Lite wheel grips	ISF PU
ES Lite face plate	Aluminum alloy
ES Lite shifter paddles	Aluminum alloy
ES Lite buttons	22
RPM LEDs	10 high brightness RGB LED beads, adjustable through MOZA Pit House
Wheel release method	MOZA quick release
SR-P Lite material	High-strength steel
Pedal sensor	Hall sensor throttle
Pedal adjustment	Adjustable spacing, pedal plate height, input adjustment, reversal and output curve adjustment
Included	R3 DD Base, ES Lite Steering Wheel, SR-P Lite Pedals without clutch, table clamp, power adapter, power cord, USB cable, toolkit, user manual, warranty card
